Pipe Rack Structure FGDs at NTPC Darlipali Super Thermal Power Stations

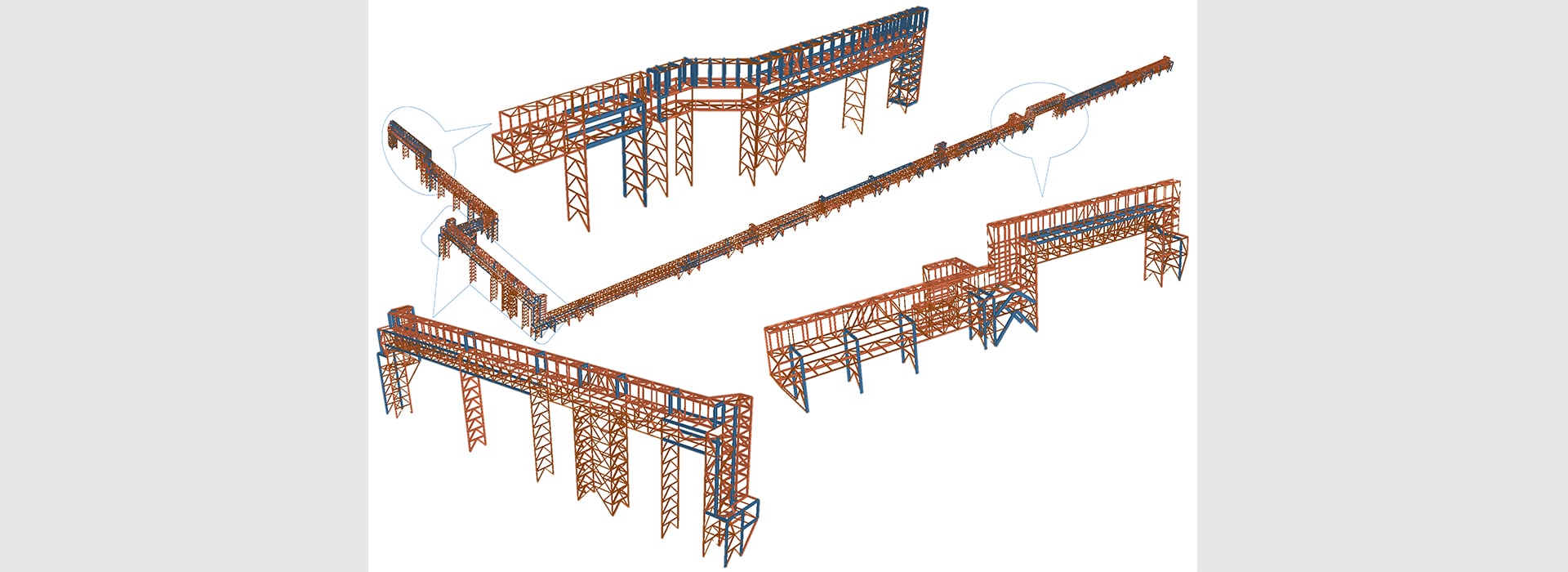

  • 3D Image

Pipe Rack Structure FGDs at NTPC Darlipali Super Thermal Power Stations

For L&T Power, Vadodara.

  • Heavy Engineering
  • Darlipali, Odisha

  • Type of Construction

    • RCC and Steel structures

  • Services Provided

    • Civil
    • Structure Design

  • Salient Features

    • Steel structure of elevated pipe rack for utility piping and cable trays.
    • Total length of pipe rack & total tonnage of Steel is approx. 850 mt. Design of 2 legged and 4 legged trestles & RCC foundations. S3M’s design is reviewed & approved by L&T and NTPC.
