Steel Pipe Manufacturing Plant for Ratnamani Metals and Tubes Limited

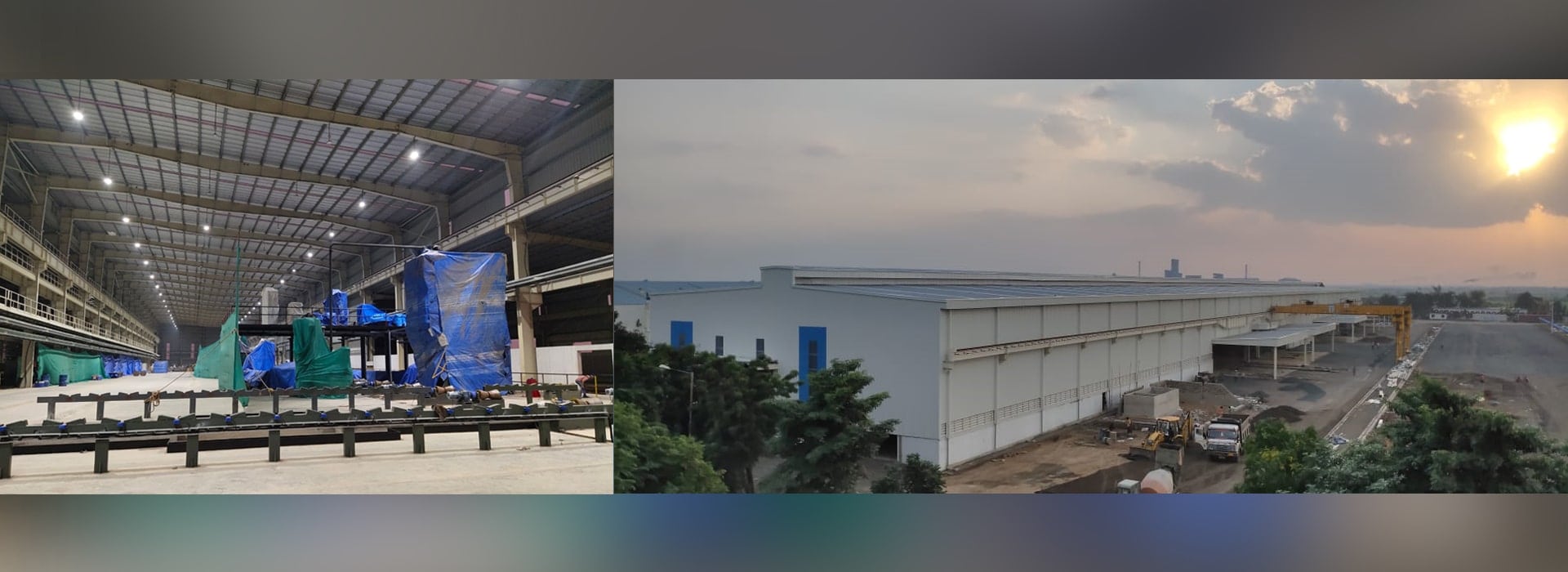

  • Actual Image

Steel Pipe Manufacturing Plant for Ratnamani Metals and Tubes Limited

  • Manufacturing
  • Bhimasar, Gandhidham, Gujarat

  • Size

    • Plot area: 1,60,000 m2
    • Construction Area: 50,000 m2

  • Services Provided

    • Master Planning
    • Structure Design
    • Infrastructure Design

  • Salient Features

    • 300m long & 150m wide (30×5) shed with 20T crane in seismic Zone-V.
    • Heavy machinery foundations include (1) Forming press of 3600 T capacity with 600 T self weight (2) Pre-bender with 1600 T capacity with 250 T self weight (3) Hydrotester of 4000T capacity with 300 T self weight.
    • All machine foundations are very complex in nature with stringent foundation parameters.
