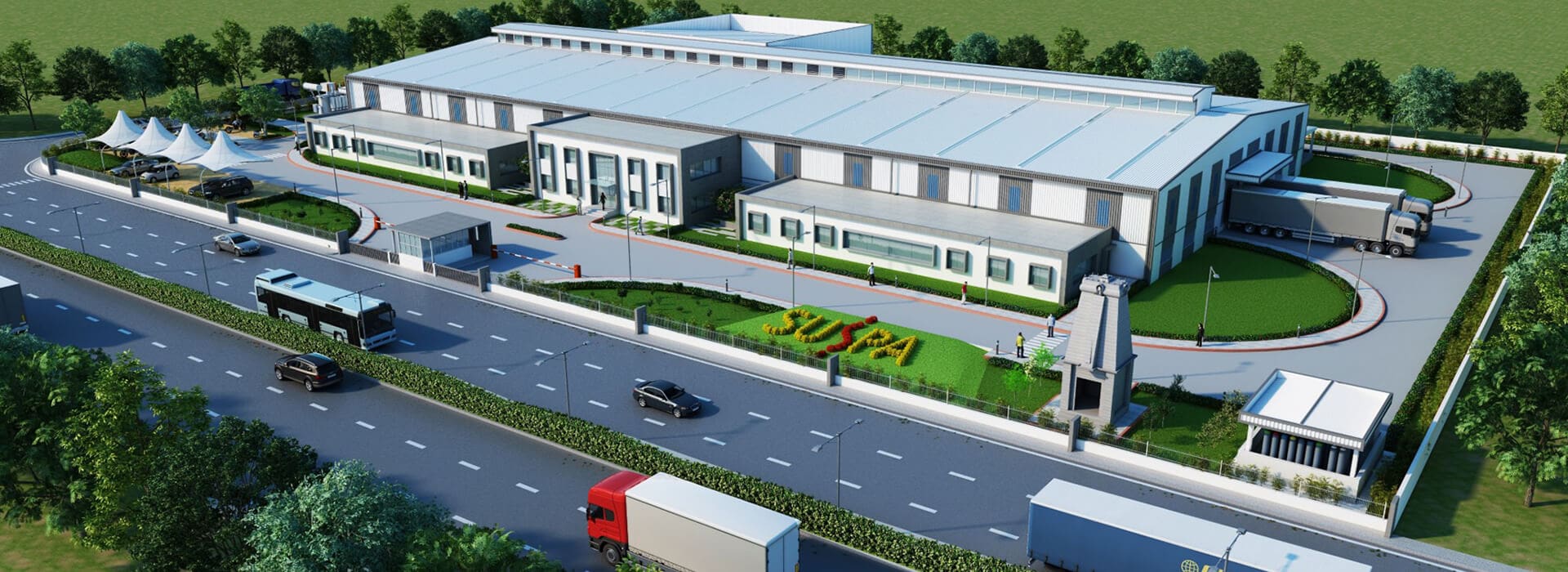

  • 3D Image
  • 3D Image
  • 3D Image

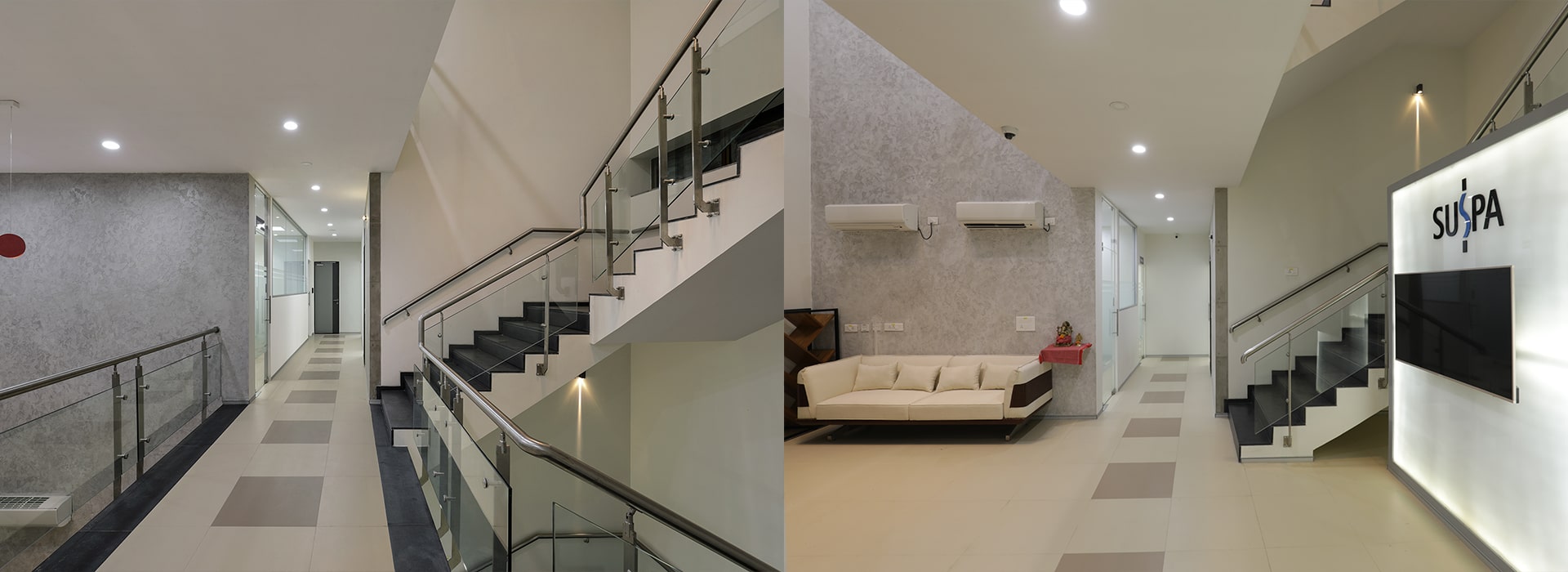

  • Actual Image
  • Actual Image
  • Actual Image
  • Actual Image
  • Actual Image
  • Actual Image
  • Actual Image
  • 3D Image
  • 3D Image
  • 3D Image


Manufacturing plant for German MNC – SUSPA Pneumatics India Pvt. Ltd.

  • Automobile
  • Sanand, Gujarat
  • SIZE

    • Ploat Area :- 12,000m2
    • Construction Area :- 7,000m2
  • Services Provided

    • Master Planning
    • Architecture
    • Civil
    • Structure Design
    • Infrastructure Design
    • Mechanical Design
    • Electrical Design
    • Fire Protection Systems
    • Sourcing Assistance
    • Construction Management

  • SALIENT FEATURES

    • 2500m2 of Air conditioned area for precision manufacturing and 2000m2 of mechanically ventilated area form the Manufcturing facility.
    • Highly complex utility services were designed and modelled in 3D for clash detection and avoiding any fouling during execution.

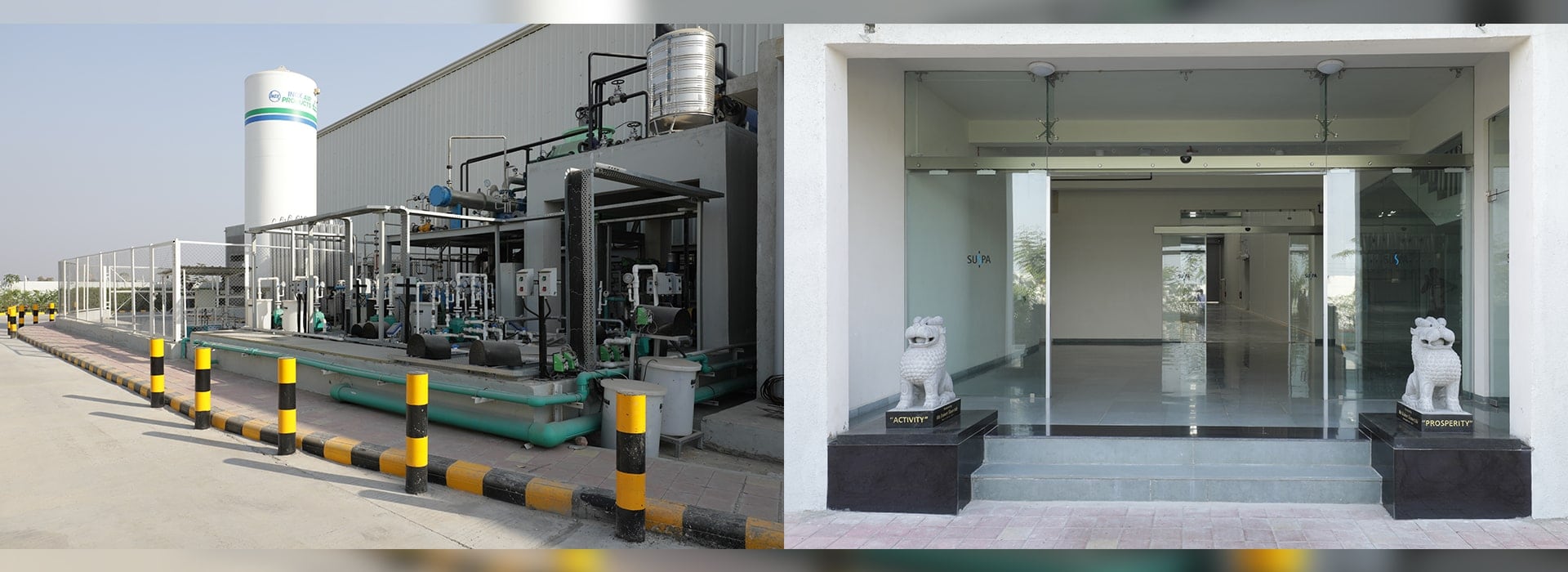

    • Major utilities included Power, Compressed air, RO water, DM water, AC and ventilation ducting, N2 gas, LPG etc.
